10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction

Product Categories
Shenzhen HongJie Water Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction

  • 1
  • 2
  • 3

Brand Name : Hongjie

Model Number : HJ-PWIn10T

Certification : ISO 14001,ISO 9001,CE,EPA

Place of Origin : Shenzhen,China

MOQ : 1set

Price : US$20000~US$30000

Payment Terms : T/T

Supply Ability : >300sets/month

Delivery Time : 7-10working days

Packaging Details : export standard wooden case

Production capacity : HJ-PWIn10T

Product name : Water purification system

Flow  rate : 10,000 L/H (10 m³/h)

Core Technology : one-stage Reverse Osmosis (RO)

Equipment Material : Stainless steel / FRP / food-grade pipelines

Operation Mode : PLC automatic control with monitoring instruments

core components : Gearbox, Pressure vessel, Pump, PLC

Membrane Type : High rejection RO membrane

Contact Now

10m³/h Industrial Reverse Osmosis Pure Water System for Water-Based Ink and Coating Production
The 10,000 liters per hour pure water treatment system is specifically engineered to deliver high-quality process water for water-based ink and coating manufacturing applications. Water quality directly impacts product stability, color consistency, dispersion performance, and shelf life in these industries.
Treatment Process Flow
Raw Water → Raw Water Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Precision Filter → Reverse Osmosis (RO) System → Pure Water Tank → Distribution Pump
Main Equipment Configuration
  • Raw Water Pump: Provides stable pressure and flow for the pretreatment system
  • Multi-Media Filter: Removes suspended solids, sediment, and turbidity to protect downstream equipment
  • Activated Carbon Filter: Eliminates chlorine, organic compounds, odors, and residual disinfectants that may affect membrane performance
  • Water Softening System: Reduces calcium and magnesium ions to prevent scaling on RO membranes
  • Precision Filter (5 μm): Provides final filtration before the RO system to remove fine particles
  • Reverse Osmosis (RO) System: Core purification unit that removes dissolved salts, heavy metals, microorganisms, and organic impurities
  • Pure Water Storage Tank: Stores treated water and ensures stable supply for production
  • Distribution Pump: Delivers purified water to production lines with stable pressure
Technical Specifications
Item Specification
Production Capacity HJ-PWIn10T
Flow Rate 10m³/H
RO Desalination Rate ≥ 98%
System Recovery Rate 60-75%
Product Water Conductivity ≤ 10 μS/cm
Product Water TDS ≤ 10 mg/L
Raw Water Turbidity ≤ 5 NTU
Industrial Applications
  • High-Quality Drinking Water: Meets demand for premium drinking water in residential communities with 24/7 purified water supply
  • Purified Water Production Plants: Compatible with automatic filling machines for complete bottled water production lines
  • Food Industry Raw Material Water: Ideal for mixing additives, ingredients, soups, or juices - improves taste, inhibits organic growth, and extends product shelf life
  • Dairy, Beverage and Wine Industry: Two-stage reverse osmosis configuration recommended to prevent taste issues from water impurities
  • Chemical Industry Water: Used for chemical raw liquid proportioning, product manufacturing, and circulating water systems - prevents additional reactions and quality deviations from excessive ions
  • Power Industry Boiler Water: Supplies pure water for boiler systems in factories and mining operations, improving efficiency and extending equipment lifespan

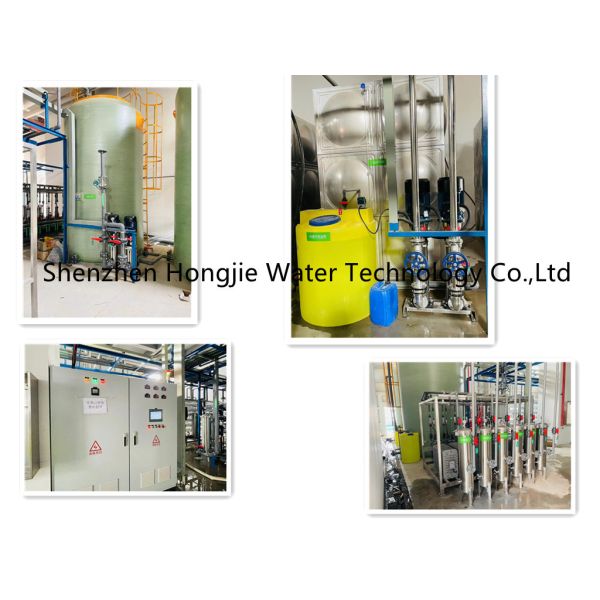

Installation Example
10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
